THE INSULATED WALK-ON GLAZING FOR FLAT ROOFS: SKYFLOOR BF

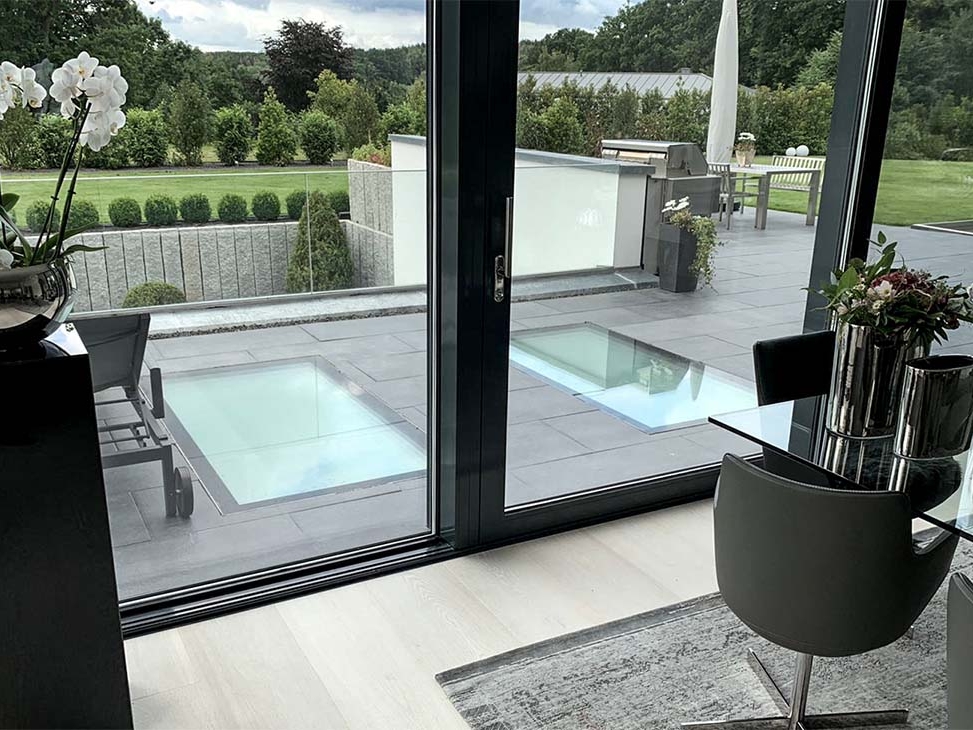

Walk-on skylights within the horizontal exterior surfaces of a building illuminate rooms naturally and according to the course of the day. The unrestricted freedom of view creates a smooth transition from living space to nature – thus significantly improving housing and living quality.

The walk-on flat roof window makes a light flooded and friendly atmosphere possible and at the same time blends seamlessly into its surroundings. The insulated floor glass, framed in stainless steel, allows a complete use of terraces, garden and circulation areas. The flat roof window extends the living space above existing rooms and is at the same time a heat-insulating, break-in proof and permanently watertight glass floor.

The SKYFLOOR BF insulated glazed flat roof window is characterised by a clear shape design and provides a modular complete glass skylight system. To meet the highest requirements for insulation, sound insulation and transparency, Taghell (Daylight) is the perfect solution for insulated rooms in a variety of building types.

  • Load-bearing or continually walked on
  • Insulated glass - double-glazing/ triple-glazing
  • waterproof
  • Fast and easy to install
  • No sills
  • Custom shapes, color and sizes
  • Custom design of the inner frame
  • Can be integrated into existing and new buildings
  • Durable system

FORM

Choose the form that best meets your needs: round, square, or a rectangular band of light; even completely customized – there are virtually no limits to the shape of your Taghell walkable skylight SKYFLOOR BF.

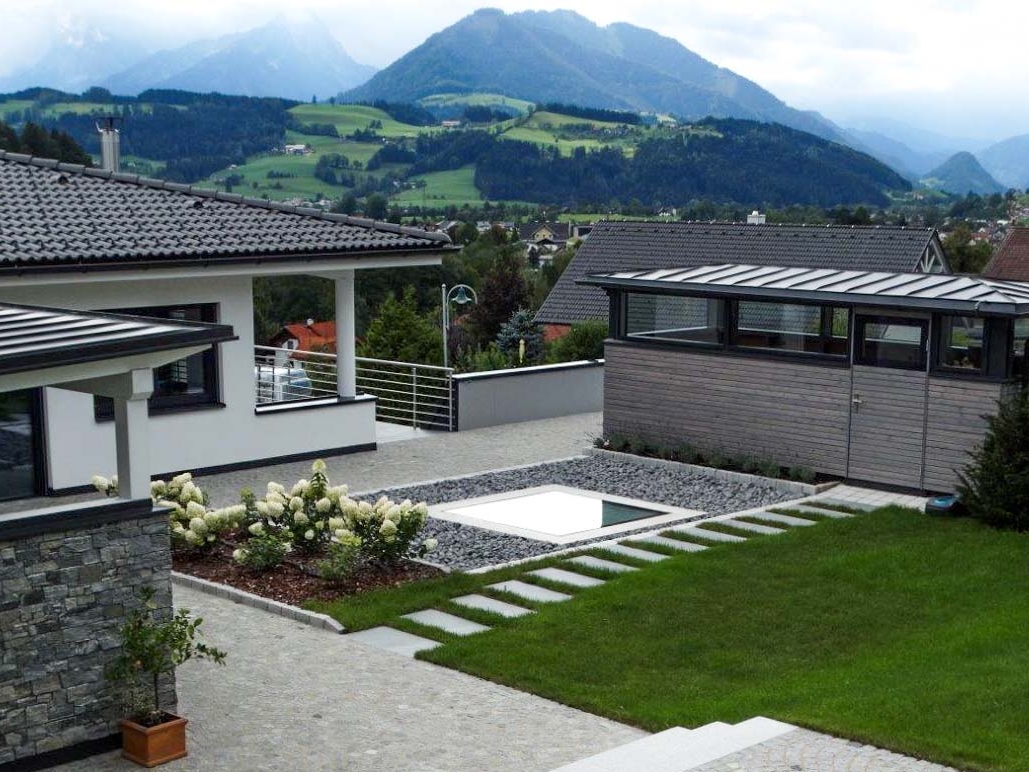

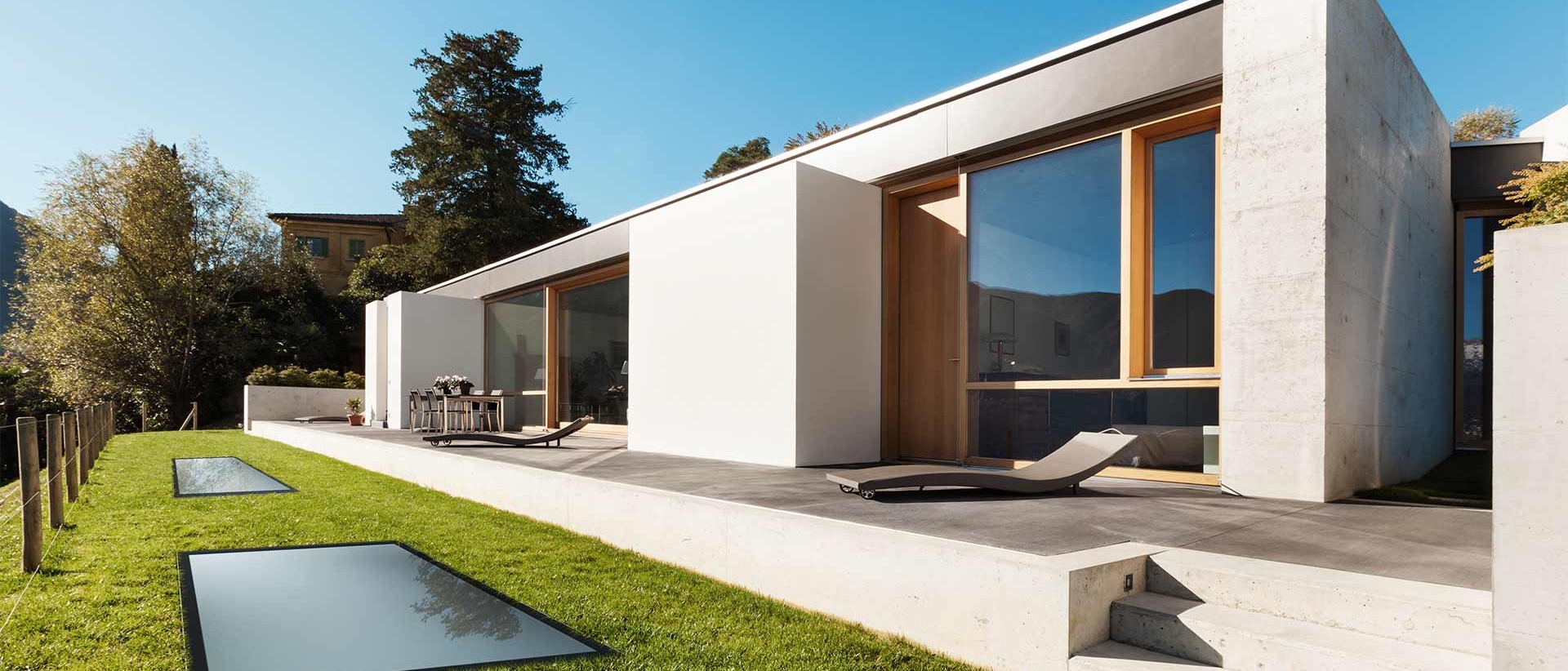

THE SQUARE

The clear, uniform shape of the Square skylight from Taghell gives your space a modern accent. Expand the limits of traditional windows and take advantage of new Interior design options made possible by the natural light that will flood into your space. Depending on the time of day and weather conditions, you will experience a range of lighting effects, all framed by the clear-cut lines of the Square.

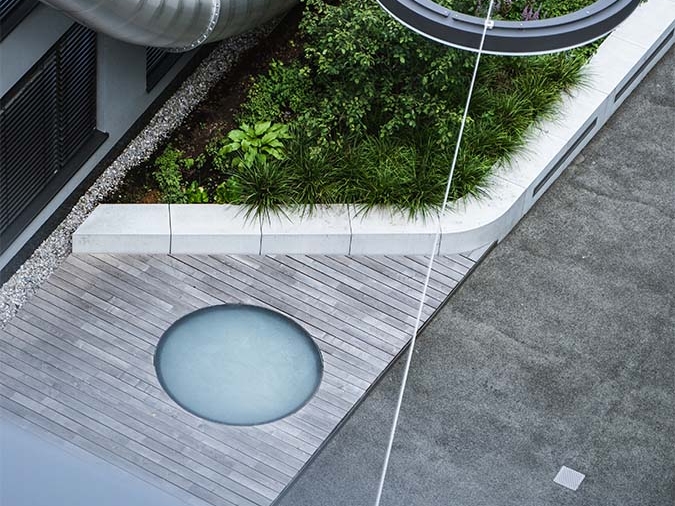

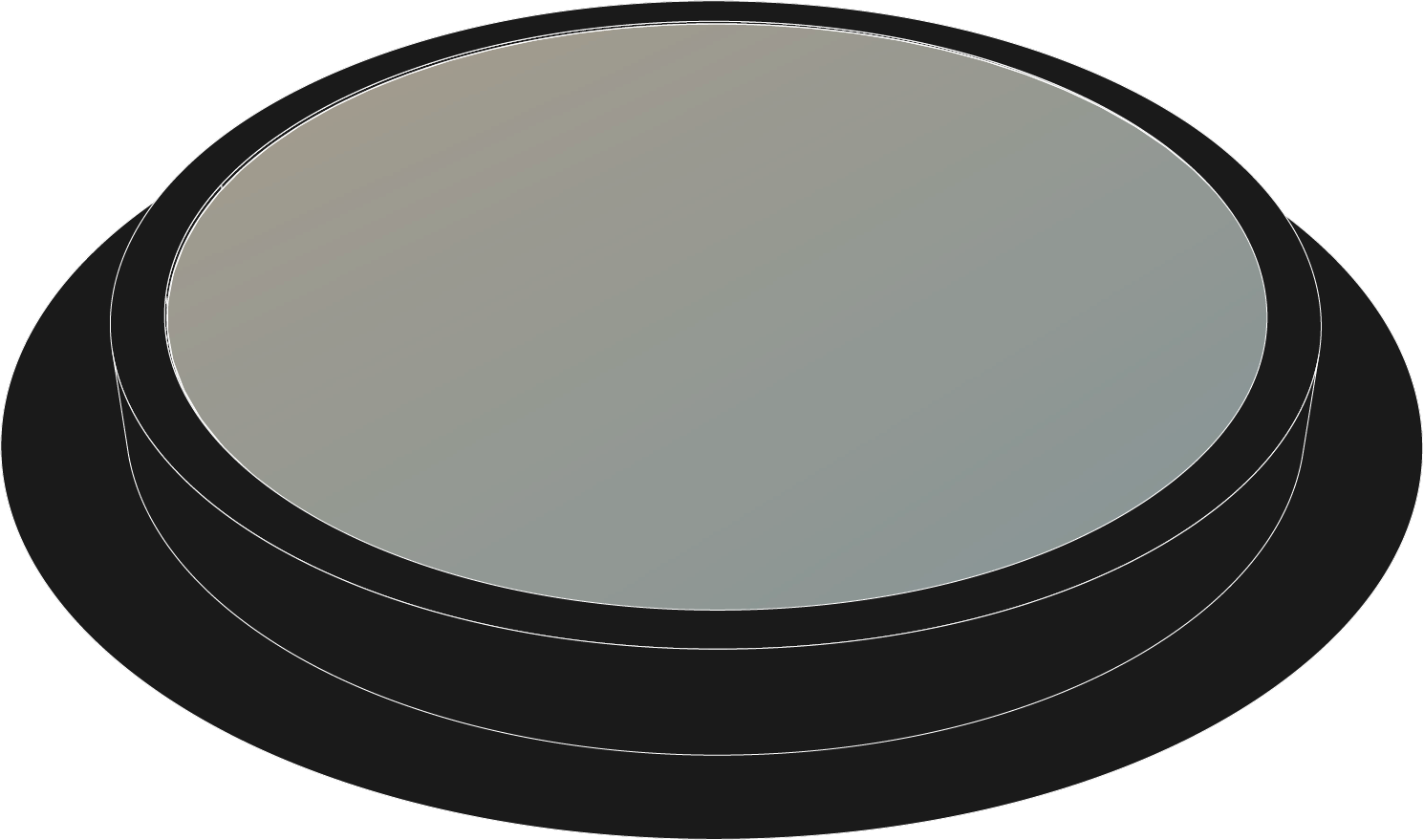

THE CIRCLE

Like spotlights with variable diameters, the Circle fits organically into its surroundings. Contemporary room concepts are supplemented with creative control of the daylight coming in, refining your space with shafts of light that shift throughout the day. Whether used as a single spotlight or in multiples to flood your space, the barrier-free Circle skylight offers smooth lines to create a contemplative mood.

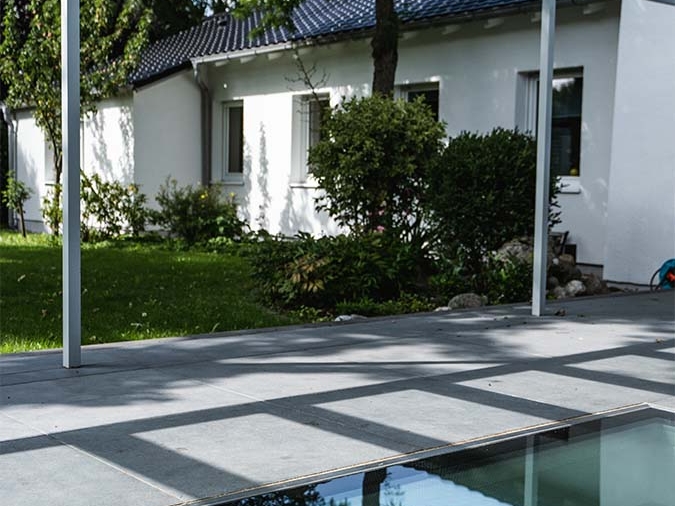

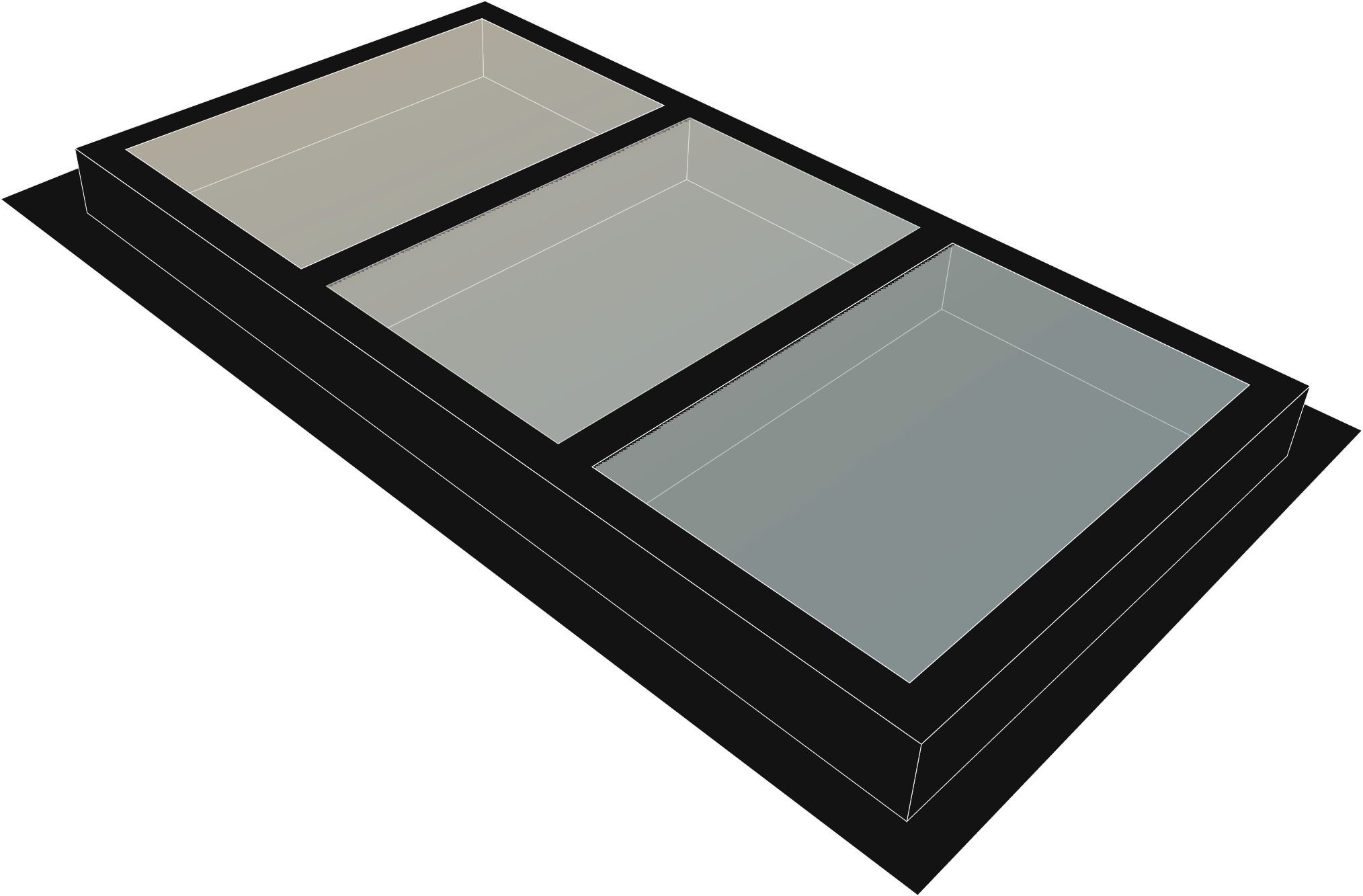

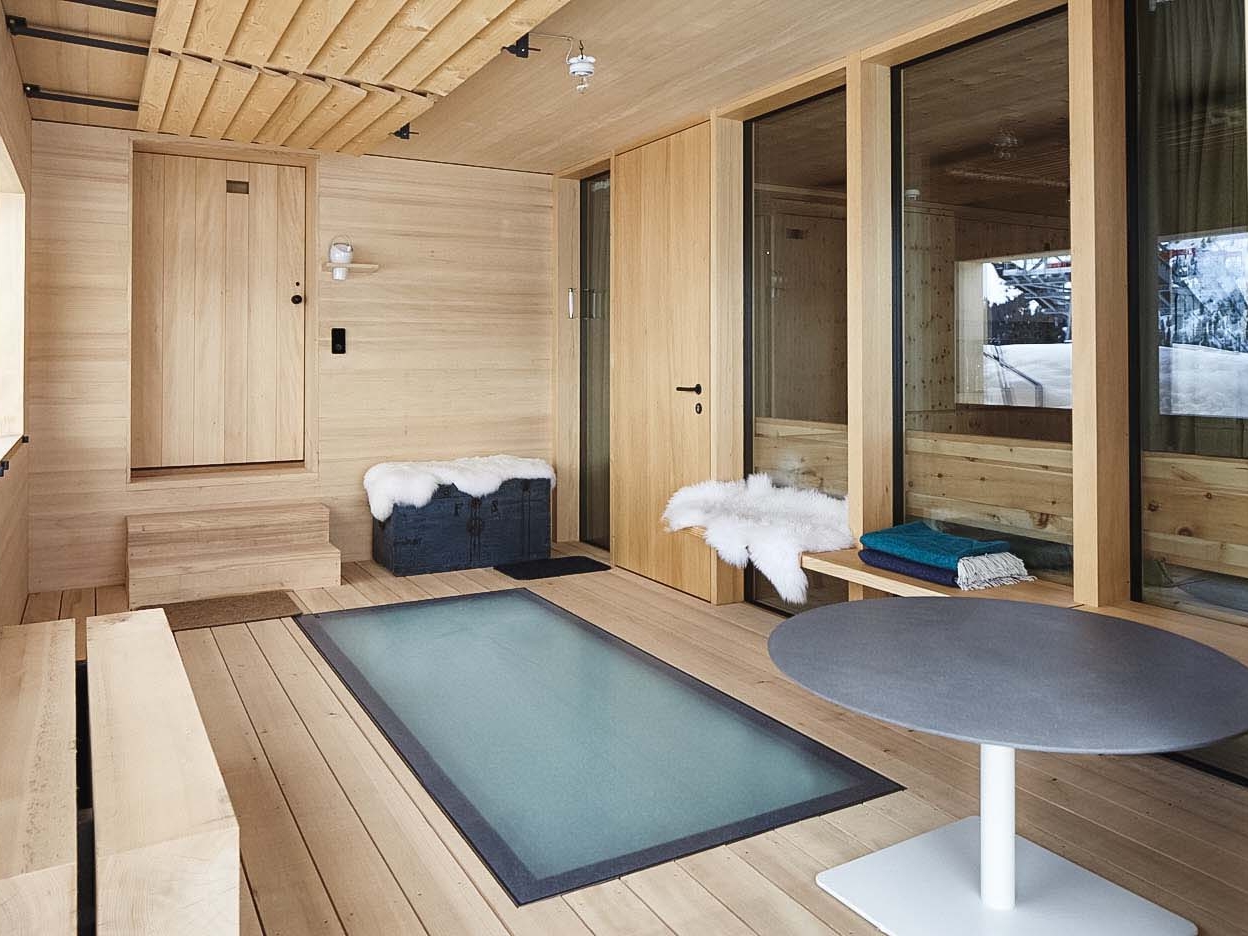

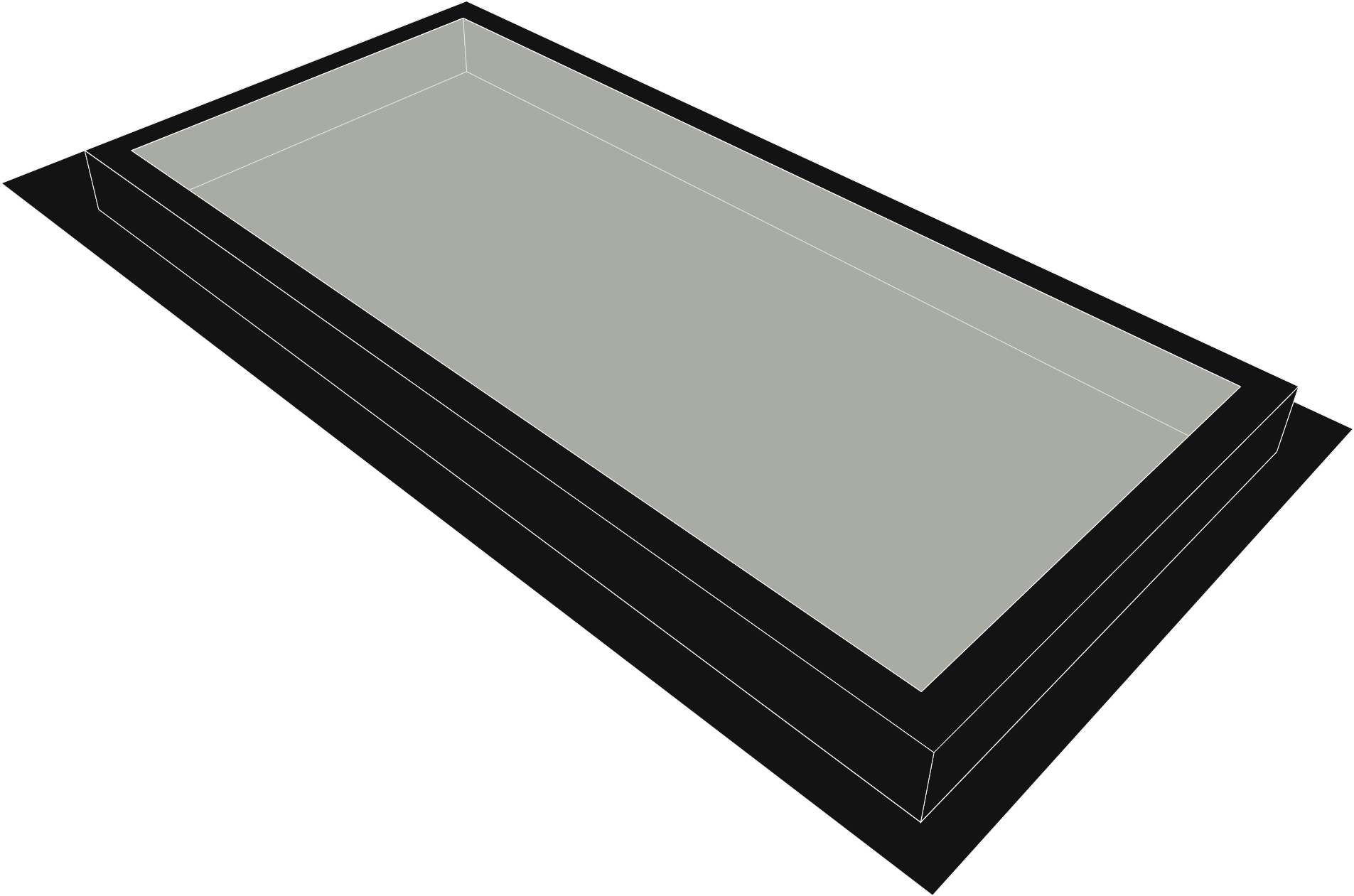

THE RECTANGLE

Use narrow-width rectangular skylights from Taghell to create extensive accents that create a generous sense of space. Line them up or use them individually to highlight a room concept and create a natural and open indoor environment. Proper placement can flood your space with light and create geometries that change the way your room feels, transcending its walls.

THE INDIVIDUAL

Our custom solutions can meet almost any need or wish in terms of shape, size, and load capacity. There are no more limits when it comes to choosing materials or colours than there are to designing the shape or individual arrangement of panes in your skylight; even how it connects to your façade. We are also pleased to take on the installation of heated skylights. We work closely with you to create the perfect skylight for your situation.

ADD ONS

Our custom solutions can meet almost any need or wish in terms of shape, size, and load capacity. There are no more limits when it comes to choosing materials or colours than there are to designing the shape or individual arrangement of panes in your skylight; even how it connects to your façade. We work closely with you to create a customised solution for the optimum insulating glazing SKYFLOOR BF.

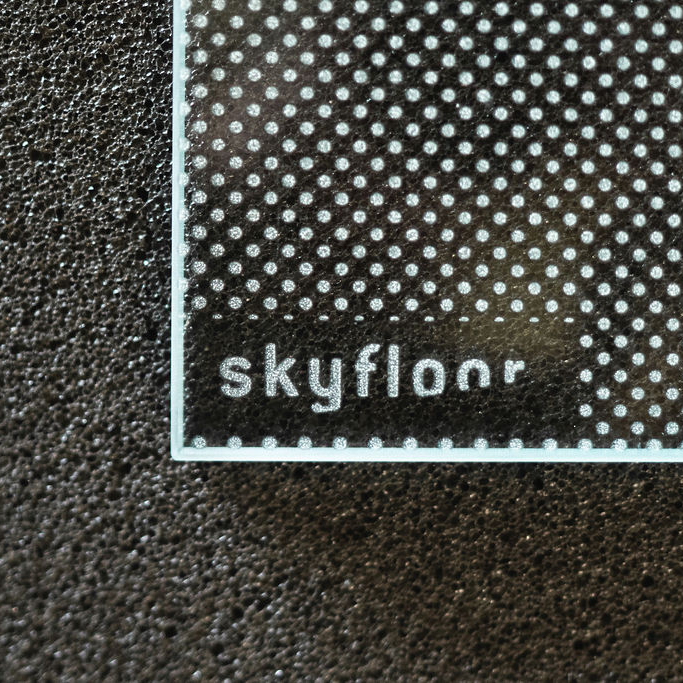

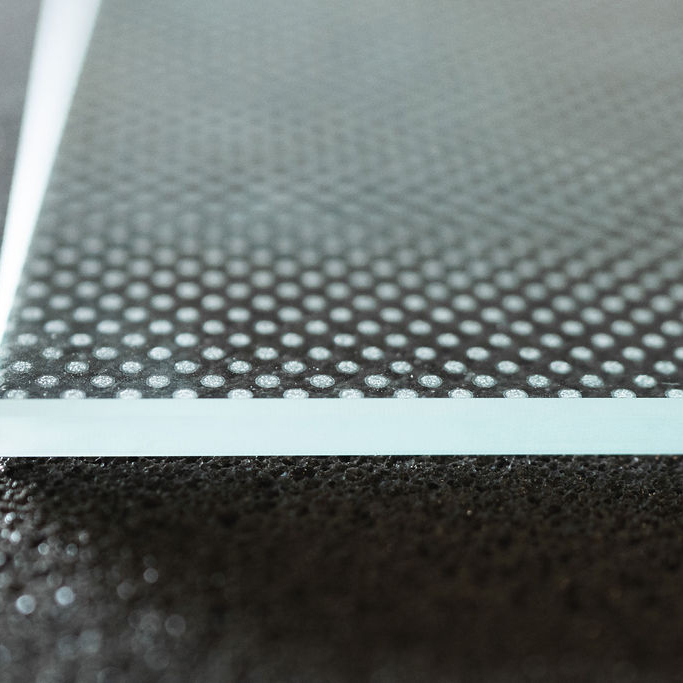

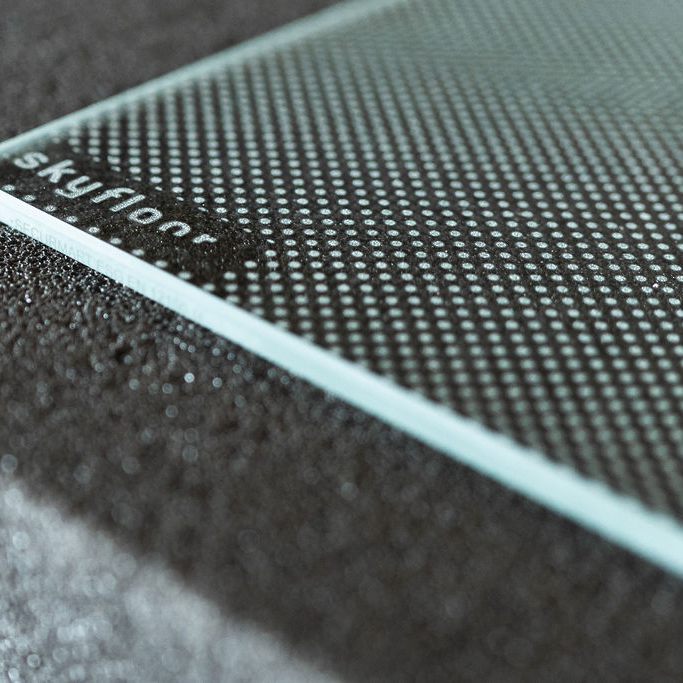

ANTI-SLIP POINTS

Slip-resistant glass surface fine dot format for good slip resistance (R10) and optimum light transmission

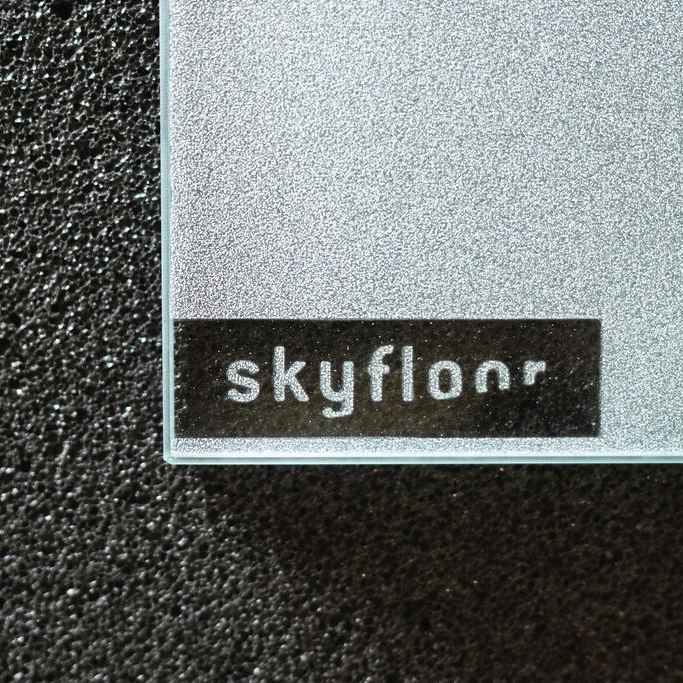

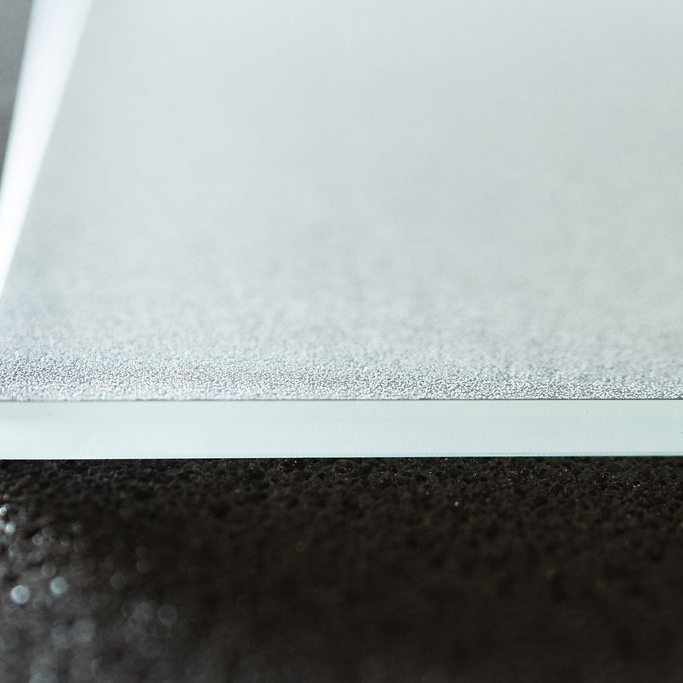

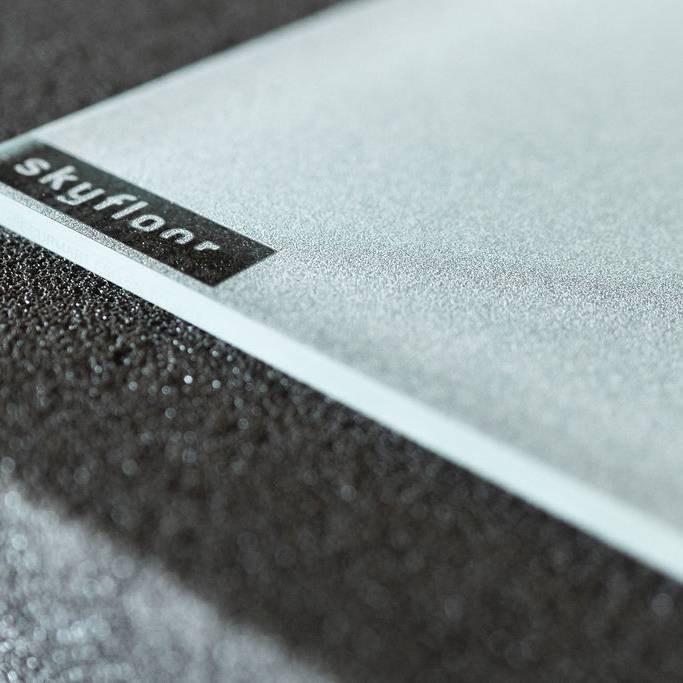

SLIP RESISTANCE FULL SURFACE

Full-surface anti-slip glass surface for best slip resistance (R13). Prevents the view inside and the view outside.

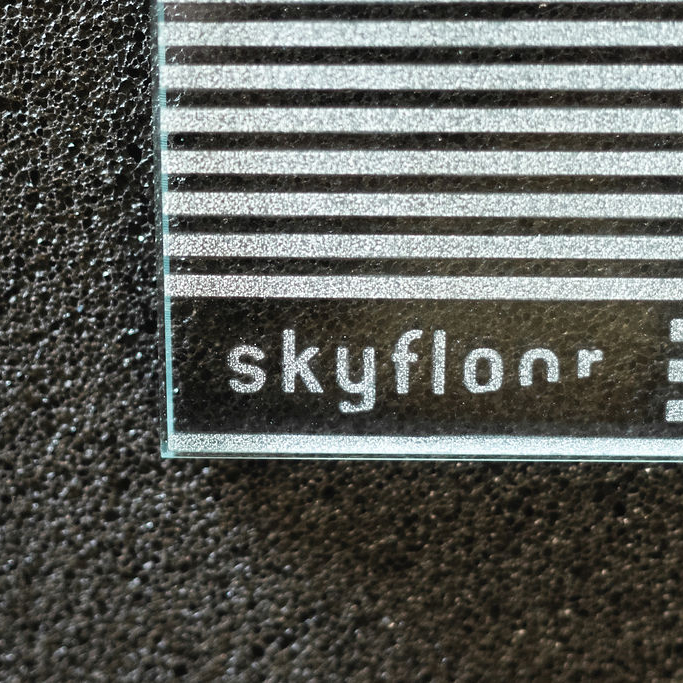

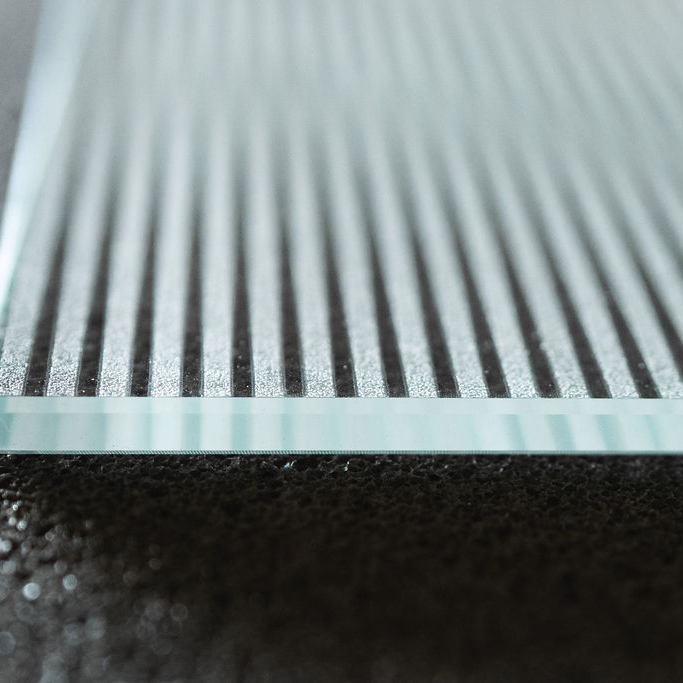

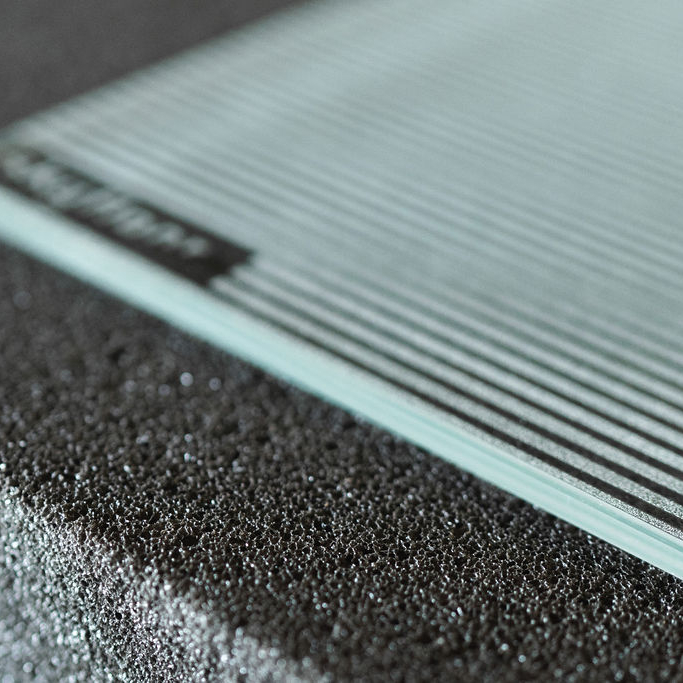

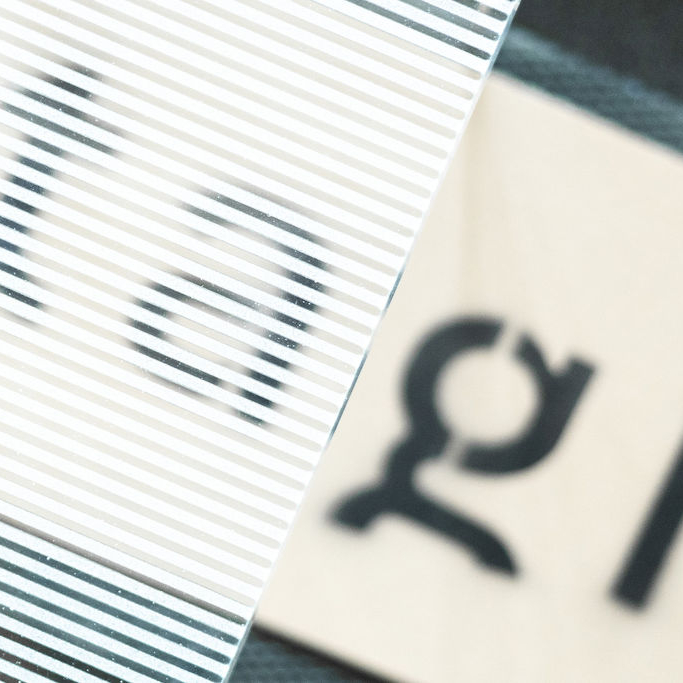

SLIP RESISTANCE STRIPES

Slip-resistant glass surface in strip format (3mm/50%) for best slip resistance (R10).

WALKABLE

Glazing walkable according to DIN 18008-5 (D), SIA (CH) and ÖNORM B 3710 (AT) up to a maximum useful load of 5kN/sqm

TRIPLE INSULATION GLAZING

Glazing with the best thermal insulation, Ug=0,6W/m2K

HEATED GLAZING

Optionally protects against condensation in case of high humidity or removes snow and ice on the surface

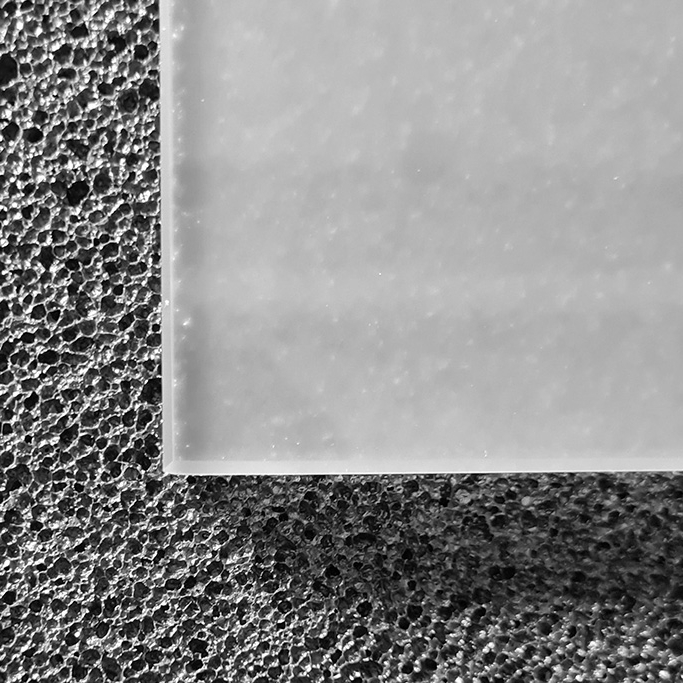

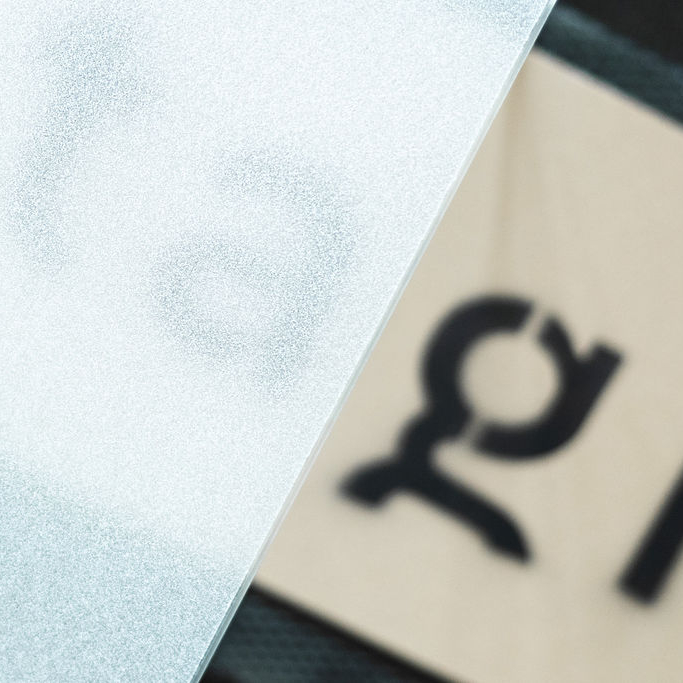

PRIVACY GLAZING

Obscures the view both inwards and outwards

INNER FRAME VARIABLE

High-quality finish of the inner frame in matt brushed stainless steel, powder-coated according to Ral/dB or PVC white

SIZES & PRICES SKYFLOOR BF

SKYFLOOR BF skylights come in a variety of sizes and can be chosen based on the various parameters of your project. Whether you’re planning a new building or retrofitting an existing one – the walk-on flat roof window from Taghell can be made to your specific measurements. (Minimum and maximum dimensions apply.)

High-end and made-to-measure walk-on skylights at transparent prices for the standard versions. This provides the basis for the Taghell pricing structure. The basic version of the floor glazing can be selected according to shape and size. Depending on the requirements, the supplements described under “Add-Ons” can be added.

All prices are net, ex-works

REFERENCE SIZES

up to 80 x 80cm from 1850€
up to 100 x 100cm from 2400€
up to 120 x 120cm from 3500€
up to 150 x 150cm from 4900€
up to 180 x 180cm from 7500€

CUSTOM SIZES AT THE SAME PRICE AS THE REFERENCE SIZE

Example: 78 x 78cm from 1850€

MAXIMUM SIZE PER GLASS

180CM X 180CM

Larger dimensions are possible by dividing the glass as desired

REFERENCE SIZES

up to 100 x 60cm from1850€
bis 120 x 80cm from 2400€
up to 140 x 100cm from 3500€
up to 200 x 100cm from4900€
up to 300 x 100cm from 7500€

CUSTOM SIZES AT THE SAME PRICE AS THE REFERENCE SIZE

Example: 100 x 51cm from 1850€

MAXIMUM SIZE PER GLASS

300CM X 120CM

Larger dimensions are possible by dividing the glass as desired

REFERENCE SIZES

up to 80cm from 3900€
up to 100cm from 4800€
up to 120cm from 6600€
up to 150cm from 11100€
up to 180cm from 16600€

CUSTOM SIZES AT THE SAME PRICE AS THE REFERENCE SIZE

Example: Diameter 78cm ab 3900€

MAXIMUM SIZE PER GLASS

180CM

Larger dimensions are possible by dividing the glass as desired

INSTALLATION

The installation of our Skyfloor is simple and time-saving. It can be carried out by your trusted roof specialist or by installation specialists from our Taghell team. We are pleased to support external fitters for successful installation of the walkable skylights. You will find notes and recommendations in our installation instructions.
Please contact us for detailed assembly instructions.

Made in Germany – delivered and installed in Europe. Taghell plans, supplies and installs walkable skylights and floor glazing in a wide range of European countries.
